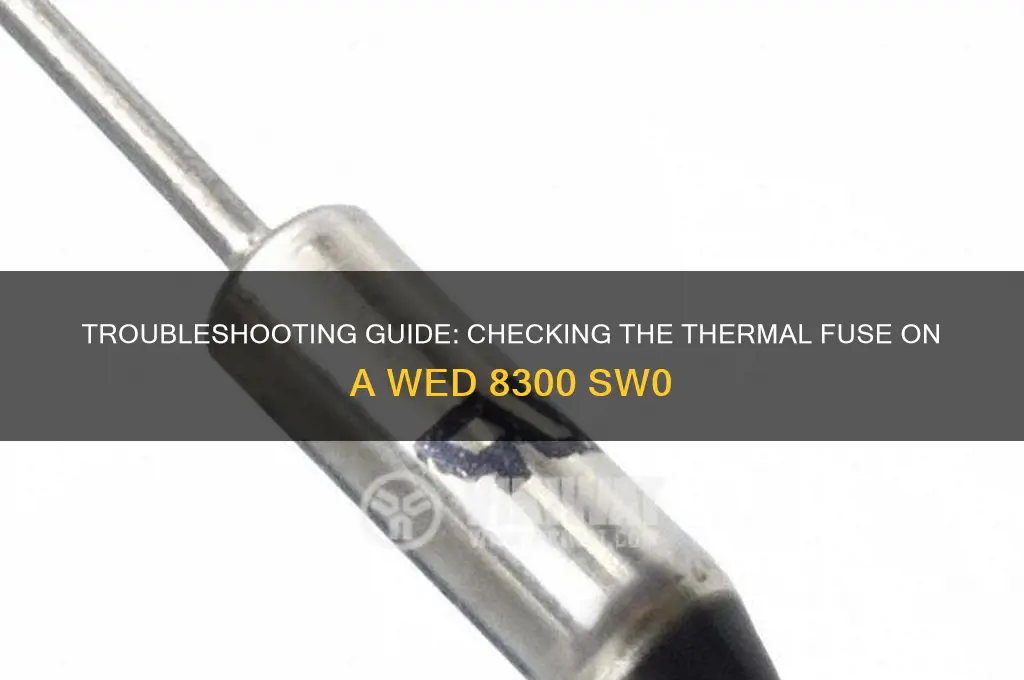

Checking the thermal fuse on a Wed 8300 SW0 dryer is a crucial troubleshooting step if your appliance stops heating. The thermal fuse is a safety device designed to shut off the dryer if it overheats, and a blown fuse is a common issue. To inspect it, first unplug the dryer or turn off the power at the circuit breaker. Locate the thermal fuse, typically found near the heating element or blower housing, by consulting the dryer’s manual or online diagrams. Remove the back panel or lower access panel to access the fuse, which resembles a small white plastic component with two wires attached. Use a multimeter to test for continuity; if there is no continuity, the fuse is blown and needs replacement. Ensure you purchase the correct replacement part and follow safety guidelines during the process.
| Characteristics | Values |
|---|---|
| Appliance Model | Whirlpool Duet Front Load Washer WED8300SW0 |
| Thermal Fuse Location | Inside the control panel or near the blower housing (varies by model) |
| Tools Required | Multimeter, screwdriver (Phillips or Torx depending on model) |
| Symptoms of Faulty Thermal Fuse | No heat during drying cycle, dryer won’t start, or error codes displayed |
| Thermal Fuse Resistance (Normal) | Typically 0 ohms (continuity) when functioning properly |
| Thermal Fuse Resistance (Faulty) | Open circuit (infinite resistance) |
| Replacement Part Number | 8318314 (common for Whirlpool Duet models) |
| Safety Precautions | Unplug the dryer before testing or replacing the thermal fuse |
| Testing Method 1. Access the thermal fuse. 2. Set multimeter to continuity or resistance mode. 3. Touch probes to both ends of the fuse. 4. Replace if no continuity. |
|
| Cost of Replacement Fuse | $10 - $20 (USD) depending on retailer |
| Difficulty Level | Moderate (requires disassembly of dryer components) |
| Estimated Time to Check/Replace | 30 minutes to 1 hour |
